Hosts

The Configuration Management/Hosts folder contains the following reports:

Date brought under Management for Last Week

This report lists any hosts (hypervisors) that have been added to the provider in the last week.

Prerequisites

  • None

Notes

  • The "VC User Name" column seems to refer to a host attribute that no longer exists, so this will be blank.

Table 1. Report Heading and Sample Row
Host Name Hostname Date Added VC User Name

se-hyp30

se-hyp30.bit63.com

09/16/19 10:44:50 UTC

​

Hardware Information

This report lists the hardware information for each host (hypervisor).

Prerequisites

  • None

Table 2. Report Heading and Sample Row
Host Name IP Address Hardware Manufacturer Hardware CPU Type Hardware Model Hardware CPU Speed Hardware Logical Cpus Hardware Cores Per Socket Hardware RAM Hardware Number Of Nics Serial Number

se-hyp06

10.2.3.4

Dell Inc.

Intel® Xeon® CPU E5-2630 v3 @ 2.40GHz

PowerEdge M630

2.52 GHz

16

8

125.5 GB

16

8K4Y..

​

Host - ESX Service Console Packages

This report lists the service console packages found on each VMware ESX host.

Prerequisites

  • A SmartState Analysis should have been run on all ESX hosts

Notes

  • This report is only applicable to VMware ESX (not ESXi) host types

Table 3. Report Heading
Name Guest Application Type Name Guest Application Name Guest Application Version Guest Application Description Guest Application Arch Guest Application V Unique Name

​

Host - ESX Services

This report lists the services found on each VMware ESX host.

Prerequisites

  • A SmartState Analysis should have been run on all VMware ESX and ESXi hosts

Notes

  • This report is only applicable to VMware ESX and ESXi host types

Table 4. Report Heading and Sample Row
Name Service Name Service Display Name Service Running

esx12.bit63.com

DCUI

Direct Console UI

True

​

Host Network Information

This report lists the networks found on each host (hypervisor).

Prerequisites

  • None

Table 5. Report Heading and Sample Rows
Name Network IP Address Network Subnet Mask Network DHCP Enabled Network DHCP Server Network DNS Server Network Default Gateway Network Description Network Domain Network Lease Expires Network Lease Obtained

esx12.bit63.com

10.2.3.4

255.255.255.128

False

vmnic4

esx12.bit63.com

172.31.2.12

255.255.0.0

False

vmnic1

esx12.bit63.com

192.168.49.12

255.255.255.0

False

vmnic3

​

Host Patches

This report lists the patches found on each VMware ESX(i) host.

Prerequisites

  • A SmartState Analysis should have been run on all ESX(i) hosts

Notes

  • This report is only applicable to VMware ESX and ESXi host types

Table 6. Report Heading
Name Patch Name Patch Description Patch Installed On

​

Hosts Summary

This report lists the software version of each host.

Prerequisites

  • None

Notes

  • This report provides data for the "Hosts - Summary by Version" widget.

Table 7. Report Heading and Sample Rows
Host Name Primary IP Address VMM Vendor VMM Product VMM Version VMM Build Number

esx13.bit63.com

10.2.3.5

VMware

ESXi

6.5.0

5969303

se-hyp22

10.19.8.2

RedHat

rhel

7.6

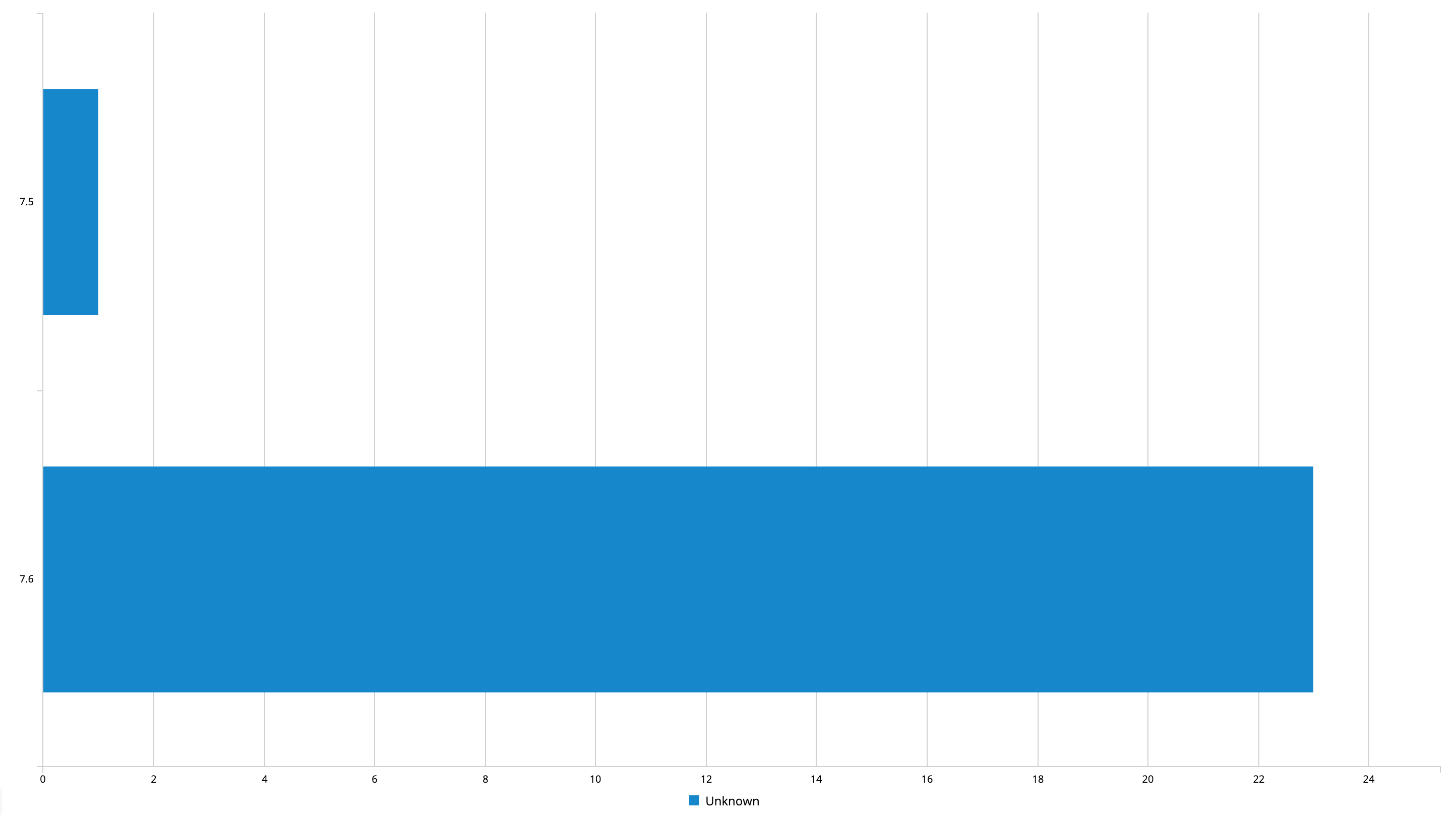

The report also generates a bar chart of host software versions (see Bar Chart of Host Software Versions)

Screenshot
Figure 1. Bar Chart of Host Software Versions

​

Host Storage Adapters

This report lists the storage adapters found on each host.

Prerequisites

  • None

Table 8. Report Heading and Sample Rows
Host Name IP Address Storage Adapter Model Storage Adapter Controller Type Storage Adapter Device Name Storage Adapter Device Type Storage Adapter Location Storage Adapter Iscsi Alias Storage Adapter Iscsi Name Storage Adapter Present Storage Adapter Start Connected

esx12.bit63.com

10.2.3.4

Dell PERC H330 Mini (blade)

vmhba0

storage

0000:02:00.0

True

True

esx12.bit63.com

10.2.3.4

Wellsburg AHCI Controller

Block

vmhba1

storage

0000:00:11.4

True

True

esx12.bit63.com

10.2.3.4

iSCSI Software Adapter

iSCSI

vmhba64

storage

N/A

iqn.1998-01.com.vmware:esx12-0734efc0

True

True

​

Host Summary for VMs

This report lists all hosts with their running VMs, along with placement and retirement details.

Prerequisites

  • None

Table 9. Report Heading and Sample Row
Host Name IP Address VM Name VM OS Name Power State Parent Datacenter Parent Folder Parent Resource Pool VM is a Template Retired? VM Retires On

esx12.bit63.com

10.2.3.4

big-ip-ve-east

windows_generic

V2-DC

Datacenters

Default for Cluster / Deployment Role

V2_Cluster

False

…​

esx12.bit63.com

Count: 109

​

Host Summary with VM info

This report lists all hosts with their running VMs, along with configuration details.

Prerequisites

  • None

Table 10. Report Heading and Sample Row
Host Name Name Power State Hardware Number of Virtual CPUs Hardware RAM

esx12.bit63.com

env-win2016-tpl

on

1

8 GB

…​

esx12.bit63.com

Count: 109

​

Host vLANs and vSwitches

This report lists all hosts with their vLANs and vSwitches.

Prerequisites

  • None

Table 11. Report Heading and Sample Rows
Name Hostname vLAN Name vLAN Tag vSwitch Name vSwitch Ports Provider Name

esx12.bit63.com

esx12.bit63.com

VM_10G_Network

209

vDS-1

120

vCenter

se-hyp01

se-hyp1.bit63.com

e2e

183

ovirtmgmt

RHV

​

Host VM Relationships

This report lists all hosts with their VMs and storage requirements.

Prerequisites

  • None

Notes

  • The "Size" column will only be populated if a SmartState Analysis has been run on the VM.

  • The "Power State" column relies on a VM being tagged with managed/power_state, otherwise this column is empty.

Table 12. Report Heading and Sample Rows
Host VM Name RAM Size Power State

esx12.bit63

Database-01

2 GB

57 GB

…​

esx12.bit63.com

Count: 109

​

Recently Added Hosts

This report lists all hosts with the date of their discovery by CloudForms, with the most recently added first.

Prerequisites

  • None

Table 13. Report Heading and Sample Rows
Name Date Created Hostname Vmm Vendor Display Href Slug

esx12.bit63.com

04/09/19 11:55:06 UTC

esx12.bit63.com

VMware

hosts/2

​

Virtual Infrastructure Platforms

This report lists all hosts sorted by virtual infrastructure platform type.

Prerequisites

  • None

Notes

  • This report provides data for the "Virtual Infrastructure Platforms" widget.

Table 14. Report Heading and Sample Rows
Virtual Infrastructure Platform Infrastructure Product OS Product Name Host Name

RedHat

rhel

RHEL

se-hyp01

RedHat

rhel

RHEL

se-hyp02

…​

RedHat

Count: 24

All Rows

Count: 24

The report also generates a bar chart of virtual infrastructure platforms (see Bar Chart of Virtual Infrastructure Platforms)

Screenshot
Figure 2. Bar Chart of Virtual Infrastructure Platforms

​
